鉻鉬鋼截止閥主要用于化工設備、通用零部件、工業設備、制藥設備、通用設備、石化設備、電力設備、治金粉末設備、采礦設備，市政、電子工業等。適用介質 水、蒸汽、油品、硝酸、醋酸、堿液、鹽水、海水、氧氣等。

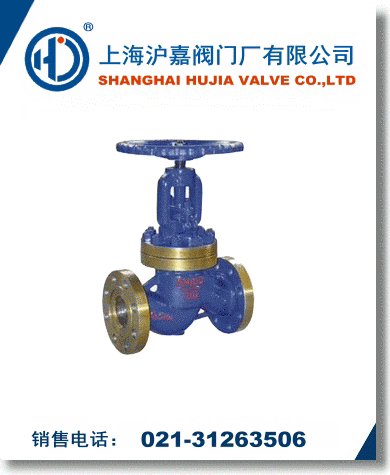

J41Y鉻鉬鋼截止閥產品優點：
1 在開啟和關閉過程中，由于閥瓣與閥體密封面間的摩擦力比閘閥小，因而耐磨．
2 開啟高度一般僅為閥座通道直徑的l / 4 ，因此比閘閥小得多。
3 通常在閥體和閥瓣上只有一個密封面，因而制造工藝性比較好，便于維修。但是，截止閥的缺點也是不容忽視的。其缺點主要是流阻系數比較大，因此造成壓力損失，特別是在液壓裝置中，這種壓力損失尤為明顯
J41Y鉻鉬鋼截止閥試驗壓力 Test pressure
|
公稱壓力PN(MPa)Nominal pressure |
1.6 |
2.5 |
4.0 |
6.4 |
10.0 |
16.0 |
|
殼體強度試驗Shell strength test |
2.4 |
3.8 |
6.0 |
9.6 |
15 |
24 |
|
上密封試驗Back seal test |
1.8 |
2.8 |
4.4 |
7.0 |
11 |
18 |
|
密封試驗Seal test |
1.8 |
2.8 |
4.4 |
7.0 |
11 |
18 |
J41Y鉻鉬鋼截止閥使用范圍 Scope of use
|
產品類型Product classification |
適用介質Suitable medium |
適用溫度（℃）Suitable temperature |
|
J41(H.Y)-C型
J941(H.Y)-C型 |
水、蒸汽、油品Water,steam,oilgoods |
≤425℃
≤450℃ |
|
J41Y-I型
J941Y-I型 |
水、蒸汽、油品Water,steam,oilgoods |
≤550℃ |
J41Y鉻鉬鋼截止閥主要零件材料
Material for main parts：
|
產品類型Product classification |
零件名稱Part name |
|
閥體、閥蓋Body bonnet |
閥桿Valve stem |
閥瓣Disc |
密封面Sealing face |
閥桿螺母Yoke nut |
填料Packing |
緊固件Fastener |
手輪Handwheel |
|
J41(H.Y)-C型 J941(H.Y)-C型 |
25、WCB |
鉻不銹鋼Cr.Stainless steel |
2Cr1325 |
H:不銹鋼Y:鈷基硬質合金鋼H:Stainless steelY:Co-based carbide alloy steel |
鋁青銅Albronze |
柔性石墨Flexible graphite |
優質碳鋼High-grade carbon steel |
可鍛鑄鐵Forgeable cast-iron |
|
J41Y-I型J941Y-I型 |
鉻鉬鋼 Cr.Mo steel |
鉻鉬鋼Cr.Mo steel |
合金鋼Alloy steel |
鈷基硬質合金鋼C0-based carbide alloy steel |
鋁青銅Albronze |
柔性石墨Flexible graphite |
合金鋼Alloy steel |
可鍛鑄鐵Forgeable cast-iron |
J41Y鉻鉬鋼截止閥主要尺寸和重量：
Main dimensions and weight：
|
公稱通徑DNNominal diameter |
主要外形尺寸和連接尺寸Main external and connecting dimensions |
重量Weight |
|
L |
D |
D1 |
D2 |
b |
f |
z-d |
H |
D0 |
|
J41(H.Y.B)-16C J41Y-16I |
|
10 |
130 |
90 |
60 |
40 |
14 |
2 |
4-14 |
198 |
120 |
4.7 |
|
15 |
130 |
95 |
65 |
45 |
16 |
2 |
4-14 |
218 |
120 |
5.2 |
|
20 |
150 |
105 |
75 |
55 |
16 |
2 |
4-14 |
258 |
140 |
7.1 |
|
25 |
160 |
115 |
85 |
65 |
16 |
2 |
4-14 |
275 |
160 |
7.4 |
|
32 |
180 |
135 |
100 |
78 |
18 |
2 |
4-18 |
280 |
180 |
8.5 |
|
40 |
200 |
145 |
110 |
85 |
18 |
3 |
4-18 |
330 |
200 |
12.5 |
|
50 |
230 |
160 |
125 |
100 |
18 |
3 |
4-18 |
350 |
240 |
20 |
|
65 |
290 |
180 |
145 |
12 |
18 |
3 |
4-18 |
400 |
280 |
25 |
|
80 |
310 |
195 |
160 |
135 |
20 |
3 |
8-18 |
355 |
280 |
35 |
|
100 |
350 |
215 |
180 |
155 |
22 |
3 |
8-18 |
415 |
320 |
50 |
|
125 |
400 |
245 |
210 |
185 |
24 |
3 |
8-18 |
460 |
360 |
75 |
|
150 |
480 |
280 |
240 |
210 |
24 |
3 |
8-23 |
510 |
400 |
100 |
|
200 |
600 |
335 |
295 |
265 |
26 |
3 |
12-23 |
710 |
400 |
210 |
|
250 |
650 |
405 |
355 |
320 |
30 |
3 |
12-23 |
786 |
450 |
446 |
|
300 |
750 |
460 |
410 |
375 |
30 |
3 |
12-23 |
925 |
500 |
648 |
J41Y鉻鉬鋼截止閥主要尺寸及重量：
Main dimensions and weight：
|
公稱通徑DN Nominal diameter |
J41(H.Y.B)-25 J41Y-25I J941(H.Y)-25 J941Y-25I |
|
主要外形尺寸和連接尺寸Main external and connecting dimensions |
電動裝置 Electric dewice |
重量 Weight |
|
L |
D |
D1 |
D2 |
b |
f |
z-d |
H手 |
H電 |
D0 |
手動 Hand |
電動 Electric |
|
10 |
130 |
90 |
60 |
4 |
16 |
2 |
4-14 |
198 |
|
120 |
|
4.9 |
|
|
15 |
130 |
95 |
65 |
45 |
16 |
2 |
4-14 |
218 |
|
120 |
|
5.4 |
|
|
20 |
150 |
105 |
75 |
55 |
16 |
2 |
4-14 |
258 |
|
140 |
|
7 |
|
|
25 |
160 |
115 |
85 |
65 |
16 |
2 |
4-14 |
275 |
|
160 |
|
7.4 |
|
|
32 |
180 |
135 |
100 |
78 |
18 |
2 |
4-18 |
280 |
|
180 |
|
8.5 |
|
|
40 |
200 |
145 |
110 |
85 |
18 |
3 |
4-18 |
330 |
|
200 |
|
12.5 |
|
|
50 |
230 |
160 |
125 |
100 |
20 |
3 |
4-18 |
350 |
645 |
240 |
DZW101 |
16 |
50 |
|
65 |
290 |
180 |
145 |
120 |
22 |
3 |
8-18 |
400 |
690 |
280 |
DZW101 |
25 |
62 |
|
80 |
310 |
195 |
160 |
135 |
22 |
3 |
8-18 |
355 |
715 |
280 |
DZW151 |
30 |
67 |
|
100 |
350 |
230 |
190 |
160 |
24 |
3 |
8-23 |
415 |
770 |
320 |
DZW20 |
34.5 |
73 |
|
125 |
40 |
270 |
220 |
188 |
28 |
3 |
8-25 |
460 |
780 |
360 |
DZW30 |
89 |
127 |
|
15 |
480 |
300 |
250 |
218 |
30 |
3 |
8-25 |
510 |
875 |
400 |
DZW45 |
98 |
215 |
|
200 |
600 |
360 |
310 |
278 |
34 |
3 |
12-25 |
710 |
967 |
400 |
DZW60 |
180 |
322 |
|
250 |
650 |
425 |
370 |
332 |
36 |
3 |
12-30 |
786 |
|
450 |
|
446 |
|
|
300 |
750 |
485 |
430 |
390 |
40 |
4 |
12-30 |
925 |
|
500 |
|
654 |
|
J41Y鉻鉬鋼截止閥主要尺寸及重量：
Main dimensions and weight：
|
公稱通徑DN Nominal diameter |
J41(H.Y)-40 J41Y-40I J941(H.Y)-40 J941Y-40I |
|
主要外形尺寸和連接尺寸Main external and connecting dimensions |
電動裝置 Electric dewice |
重量 Weight |
|
L |
D |
D1 |
D2 |
D6 |
b |
f |
f2 |
z-d |
H手 |
H電 |
D0 |
手動 Hand |
電動 Electric |
|
10 |
130 |
90 |
60 |
40 |
35 |
16 |
2 |
4 |
4-14 |
198 |
|
120 |
|
4.9 |
|
|
15 |
130 |
95 |
65 |
45 |
40 |
16 |
2 |
4 |
4-14 |
233 |
|
120 |
|
5.4 |
|
|
20 |
15 |
15 |
75 |
55 |
51 |
16 |
2 |
4 |
4-14 |
275 |
|
140 |
|
7 |
|
|
25 |
160 |
115 |
85 |
65 |
58 |
16 |
2 |
4 |
4-14 |
285 |
|
160 |
|
8.8 |
|
|
32 |
180 |
135 |
100 |
78 |
66 |
18 |
2 |
4 |
4-18 |
302 |
|
180 |
|
11.8 |
|
|
40 |
200 |
145 |
110 |
85 |
76 |
18 |
3 |
4 |
4-18 |
355 |
|
200 |
|
16.5 |
|
|
50 |
230 |
160 |
125 |
100 |
88 |
20 |
3 |
4 |
4-18 |
373 |
645 |
240 |
DZW101 |
24 |
61 |
|
65 |
290 |
180 |
145 |
120 |
110 |
22 |
3 |
44 |
8-18 |
408 |
690 |
280 |
DZW101 |
33 |
75 |
|
80 |
310 |
195 |
160 |
135 |
121 |
22 |
3 |
4 |
8-18 |
436 |
715 |
320 |
DZW201 |
44 |
84 |
|
100 |
350 |
230 |
190 |
160 |
15 |
24 |
3 |
4.5 |
8-23 |
480 |
770 |
360 |
DZW301 |
60 |
101 |
|
125 |
400 |
270 |
220 |
188 |
176 |
28 |
3 |
4.5 |
8-25 |
558 |
782 |
400 |
DZW45 |
89 |
207 |
|
150 |
480 |
300 |
250 |
218 |
204 |
30 |
3 |
4.5 |
8-25 |
611 |
875 |
400 |
DZW60 |
98 |
226 |
|
200 |
600 |
375 |
320 |
282 |
260 |
38 |
3 |
4.5 |
12-30 |
720 |
1160 |
400 |
DZW901 |
190 |
339 | |
